PP Anti Corrosion Magnetic Level Gauge Indicator for Liquid Tank

Product Categories
Sichuan Vacorda Instruments Manufacturing Co., Ltd
Contact Now

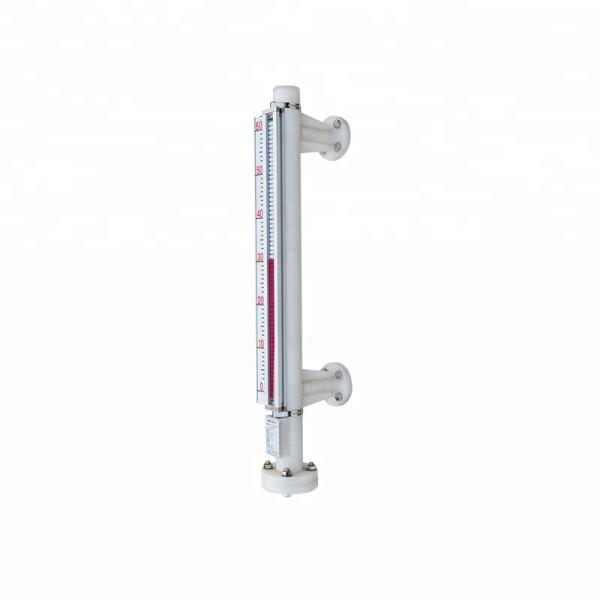

PP Anti Corrosion Magnetic Level Gauge Indicator for Liquid Tank

Place of Origin : Sichuan, China (Mainland)

Brand Name : Vacorda

Model Number : UHC-

Supply Ability : 100 Piece/Pieces per week

Packaging Details : wooden box for the pp level indicator

MOQ : 1 Piece/Pieces

Price : USD150-1000/pc

Payment Terms : T/T, Western Union, L/C

Delivery Time : 5-8 working days

Certification : SIL, CE, ISO

Temperature : ≤80℃

Warranty : 12 months

Nominal Pressure : PN2.5~PN16 (*0.1MPa)

Product name : PP Anti Corrosion Magnetic Level Gauge Indicator for Liquid Tank

Installation form : side mounted/top mounted.etc

Material : PP

Center to center distance : 150~6000mm or customize

Protection class : IP65

FOB Port : Shanghai/Shenzhen

limited level switch : SPDT, SPST

Output : 4~20mA

Contact Now

PP Anti Corrosion Magnetic Level Gauge Indicator for Liquid Tank

Product Description

The UHC magnetic level gauge (PP anti corrosive type) is also produced of measuring tube,bi-colored display cylinder, ruler, top&low flange,magnetic ball and level transmitter.Based on buoyance principle,the magnetic ball in the body of the level gauge is up or down with the liquid level changing and makes dual-colored turning to show the level of medium. Each cylinder is with two-color axisymmetric structures.The distance of two cylinders is 10mm. Red side of display cylinder indicates liquid and white side display cylinder indicates air. Besides measuring liquid level,it also could measure the interface of the two kinds of liquid. PP type magnetic level gauge used for types of corrosive medium, for example, sulfuric acid, nitric acid, hydrochloric acid, phosphoric acid, silicic acid, etc., please contact us directly for more situation of the medium.


Product installation
PP Anti Corrosion Magnetic Level Gauge Indicator for Liquid Tank

Product Parameters

(1) Center-center distance:

150~6000mm or customized

(2) Medium density:

More than 0.55g/cm3

(3) Nominal pressure:

PN16~PN320(x 0.1MPa)

(4) Material:

PP

(5)Operating temperature:

≤80 °C

(6) Process connection:

DN20/RF/14 HG/T 20592-2009 (Default)

(7)Indicator types:

A: Al &ABS flap cylinder B: Al flap plate
C: PVC ABS flap cylinder D: PP&ABS flap cylinder
E: AL &LED F: PP&LED

(8) Structure of top chamber:

1.Welding cover
2.Welding cover with M14*1.5 plug screw
3.Flange
4.Flange with M14*1.5 plug screw
5.Welding cover with DN20 flange
6.Flange with DN20 flange
7.Welding cover with air valve
8.Flange with air valve

(9) Structure of bottom chamber:

1.Flange cover
2.Flange with drain plug screw
3.Flange with DN20 welding tube
4.With DN20 flange
5.With needle/ball valve

(10)Protection class:

IP65

Application: Widely used in petroleum, chemical industry, oil field, pharmaceuticals industry, food, wine industry etc.,
suitable for level measurements under the environment of high/low temp., high pressure, strong corrosion, toxicity.

Note: Basic type, top mounted type, heat tracing type, LPG specialized type, anti-corrosive type, boiler steam
specialized type etc, they have some differences in technical parameter.

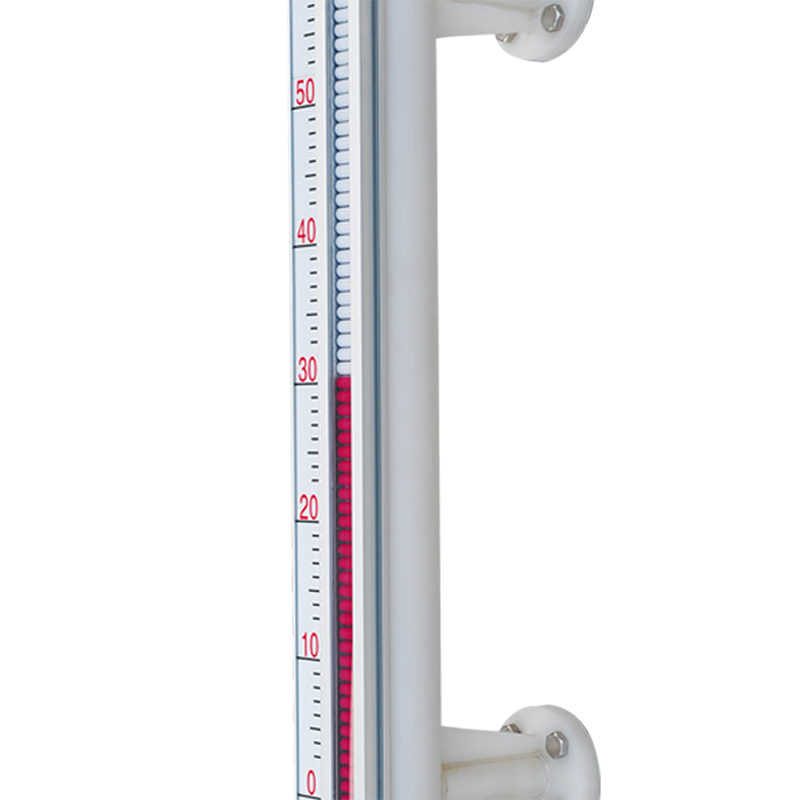

Detailed Images

PP Anti Corrosion Magnetic Level Gauge Indicator for Liquid TankPP Anti Corrosion Magnetic Level Gauge Indicator for Liquid Tank
