Automatic Reliability Liquid Level Indicator Wireless Water Tank Level Controller System

Name: Automatic Reliability Liquid Level Indicator Wireless Water Tank Level Controller System
Brand: Vacorda
Price: 1 USD

Automatic Reliability Liquid Level Indicator Wireless Water Tank Level Controller System Manufactures

Place of Origin : Sichuan, China (Mainland)

Brand Name : Vacorda

Model Number : UHC

Supply Ability : 300 Piece/Pieces per Month

Packaging Details : wooden box.

MOQ : 1 Piece/Pieces

Price : Negotiable

Certification : ISO9001/CE/TUV/From-E

Meterial : 304,316L,1Cr18Ni9Ti,0Cr18Ni9,00Cr17Ni14Mo2,Titanium

Connection : flange DN50~DN150 RF

Max measurement : L=6m

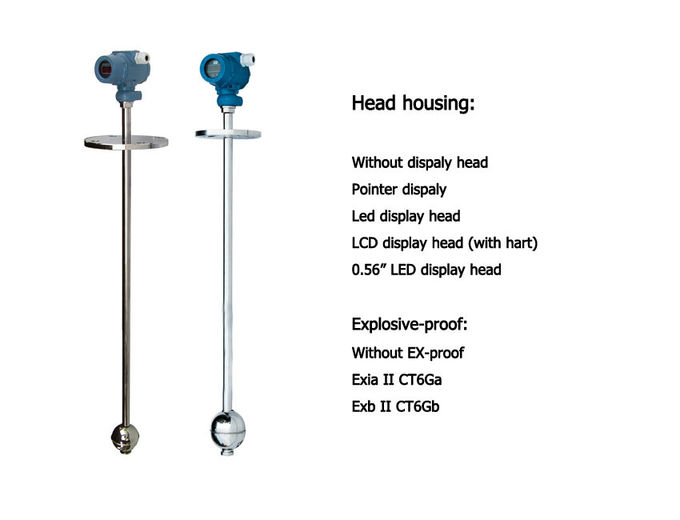

Name : magnetic floating ball level switch

After service : twelve months

max control area : L-120mm

Min control : 50mm

density : >0.5g/cm3

pressure : PN2.5-PN160

float diameter : D28~120

Port : shanghai/shenzhen

Contact Now

Automatic Reliability Liquid Level Indicator Wireless Water Tank Level Controller System

Product Description

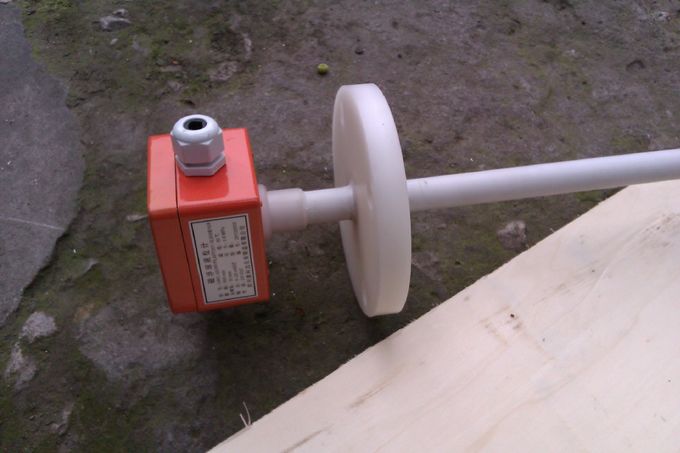

Magnetic float level switch consist of reed and magnetic float ball, which is based on the floating principle that utilizes magnetic float ball to make the relevant reed close or open according to the height changing of the liquid level, thus controlling and measuring the liquid level.

Product features

1.Long life span, stable and reliable operation, easy installation, almost no maintenance

2.Independent of mediums’ physical and chemical status

3. Appliable for all kinds of bad medium environment with density ≥0.5g/cm³

4. Available for interface detection of mediums with two different densities

5. Wide application range. Pressure 0~PN160 (max. up to PN320), temperature -40~+150 ° c

Product Parameters

(1) High temperaturre type:	≤150℃
(2)Protection grade:	IP65
(3)Working temperature scope:	-40℃~80℃ -40~120℃
(4)Anti-explosion grade:	EXia EXd
(5)Installation Angle :	≤±25°
(6)Installation Type:	DN50/RF/PL(HG/T20592-2009)
(7)Working pressure:	PN2.5~ PN160(Max pressure PN320)
(8)Medium Density:	≥0.5g/cm3
(9)Connection :	M20*1.5 female thread
(10)MAX Installation Depth:	6000mm

Detailed Images

Automatic Reliability Liquid Level Indicator Wireless Water Tank Level Controller System

The magnetic suspension level gauge and the container to be measured form a communicating device, so that the liquid level between the container to be measured and the measuring tube body is equal. When the float in the measuring tube of the liquid level gauge changes with the measured liquid level, the magnetic body in the float interacts with the magnetic body in the color code displayed on the display bar and reverses, so that red means there is liquid and white means no The purpose of accurately displaying the liquid level on the spot.

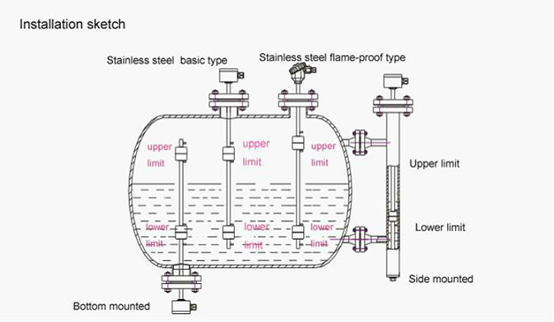

Magnetic levitation pair installed horizontally
A) When the user receives the product, he must carefully check the product to see if there is any damage during transportation and whether it is consistent with the order requirements. After checking, install it correctly in the following order.
B) Float and measuring tube are packed separately. Remove the bottom flange, make the upper part of the float upward, put the float into the measuring tube, and install the bottom flange. Then connect with the container to be measured
C) The magnetic body in the float interacts with the magnet in the color bar on the display screen, the color code is reversed, red means liquid, and white means no liquid.
Note: Handle the float carefully to avoid damage; In order not to affect the read value, all the floats in the display column must be adjusted to white before installation.
